CATEGORY
Carbide End Mill 4 Flute
PRODUCT NAME
SYPEMAL 400
Tool Material
Ultra Micro Grain Carbide (UMG)
Coating
Uncoated
Recommendation
Recommendation Excellent
Aluminium
Recommendation Good
HRC
Helix
35°
Product Description
Carbide End Mill 4 Flute Uncoated

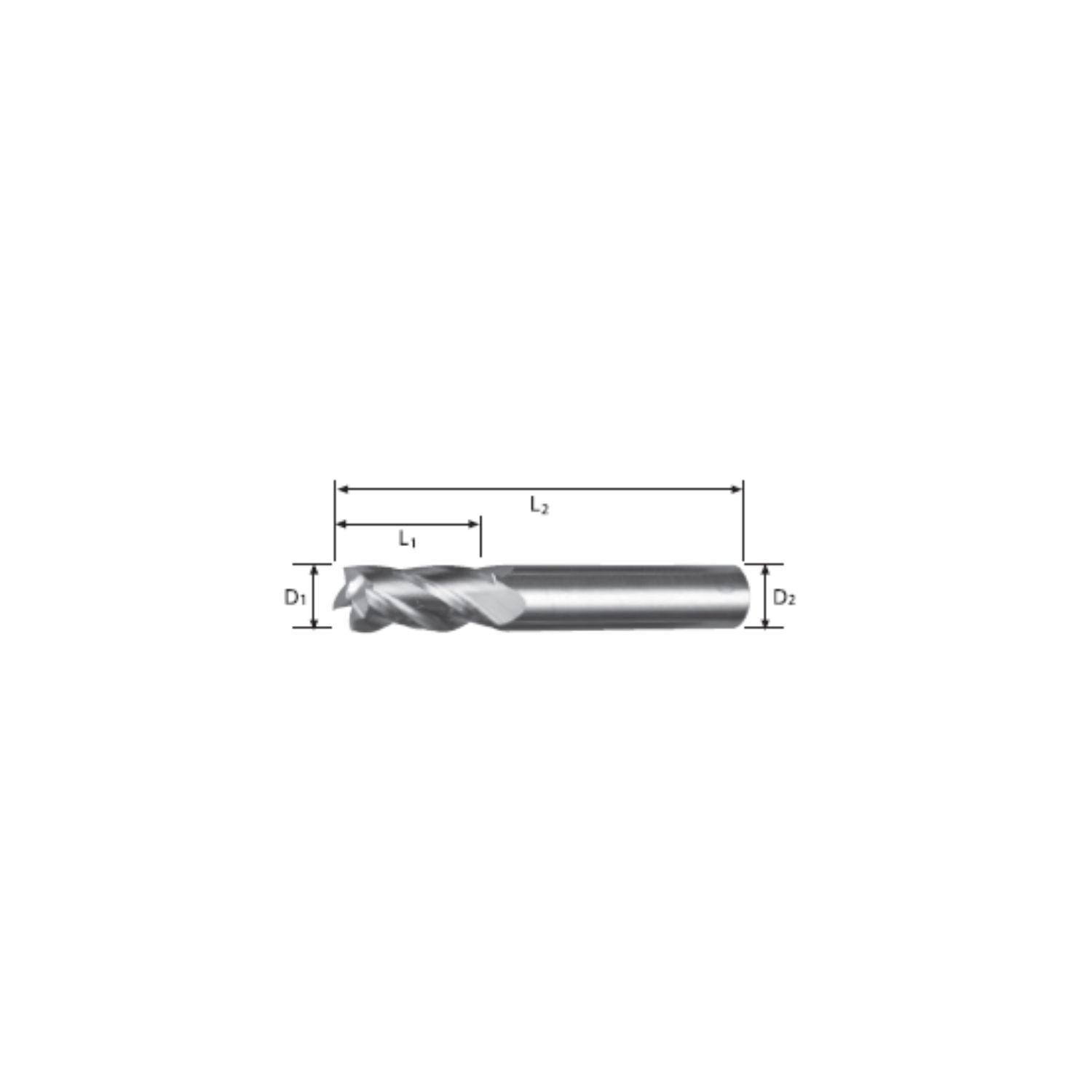

| Part No. | Mill Dia (D1) | Cutting Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|
| SYPEMAL 400 010 | 1.0 | 3.0 | 4.0 | 50.0 |
| SYPEMAL 400 015 | 1.5 | 4.5 | 4.0 | 50.0 |
| SYPEMAL 400 020 | 2.0 | 6.0 | 4.0 | 50.0 |
| SYPEMAL 400 025 | 2.5 | 7.5 | 4.0 | 50.0 |
| SYPEMAL 400 030 | 3.0 | 9.0 | 3.0 | 50.0 |
| SYPEMAL 400 040 | 4.0 | 12.0 | 4.0 | 50.0 |
| SYPEMAL 400 050 | 5.0 | 15.0 | 5.0 | 50.0 |
| SYPEMAL 400 060 | 6.0 | 18.0 | 6.0 | 50.0 |
| SYPEMAL 400 080 | 8.0 | 24.0 | 8.0 | 60.0 |
| SYPEMAL 400 100 | 10.0 | 30.0 | 10.0 | 75.0 |
| SYPEMAL 400 120 | 12.0 | 36.0 | 12.0 | 75.0 |
| SYPEMAL 400 160 | 16.0 | 48.0 | 16.0 | 100.0 |
| SYPEMAL 400 180 | 18.0 | 55.0 | 20.0 | 100.0 |
| SYPEMAL 400 200 | 20.0 | 55.0 | 20.0 | 100.0 |
