CATEGORY
Carbide End Mill & Ball Nose - For Hardened Material
PRODUCT NAME
SYPBNHD 200-C
Tool Material
Ultra Fine Carbide (UF)
Coating
TiSiN Coating
Recommendation
Recommendation Excellent
Hardened Steel 70HRC
Recommendation Good
Steel
Cast Iron
HRC
<70
Helix
35°

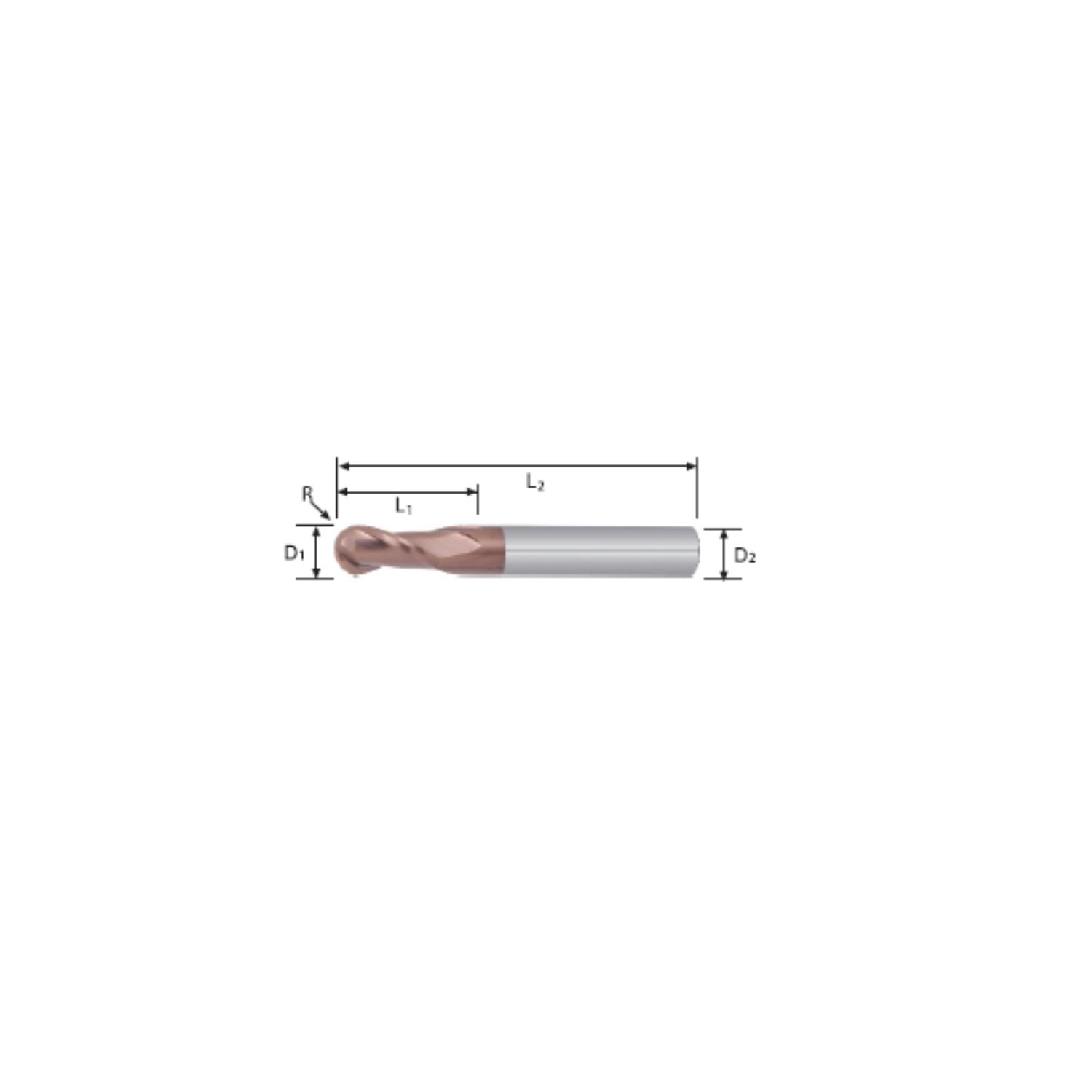

Product Description
Carbide Ball Nose 2 Flute Coated
(Hardened Material)
| Part No. | Mill Dia (D1) | Radius (R) | Cutting Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|---|
| SYPBNHD 200 010C | 1.0 | 0.50 | 2.0 | 4.0 | 50.0 |
| SYPBNHD 200 015C | 1.5 | 0.75 | 3.0 | 4.0 | 50.0 |
| SYPBNHD 200 020C | 2.0 | 1.00 | 4.0 | 4.0 | 50.0 |
| SYPBNHD 200 030C-4 | 3.0 | 1.50 | 6.0 | 4.0 | 50.0 |
| SYPBNHD 200 040C | 4.0 | 2.00 | 8.0 | 4.0 | 50.0 |
| SYPBNHD 200 050C-6 | 5.0 | 2.50 | 10.0 | 6.0 | 50.0 |
| SYPBNHD 200 060C | 6.0 | 3.00 | 12.0 | 6.0 | 50.0 |
| SYPBNHD 200 080C | 8.0 | 4.00 | 16.0 | 8.0 | 60.0 |
| SYPBNHD 200 100C | 10.0 | 5.00 | 20.0 | 10.0 | 75.0 |
| SYPBNHD 200 120C | 12.0 | 6.00 | 24.0 | 12.0 | 75.0 |
