CATEGORY
Carbide End Mill & Ball Nose - For Hardened Material
PRODUCT NAME
SYMBNHD 200-C
Tool Material
Ultra Fine Carbide (UF)
Coating
TiSiN Coating
Recommendation
Recommendation Excellent
Hardened Steel 70 HRC
Recommendation Good
Steel
Cast Iron
HRC
<70
Helix
35°

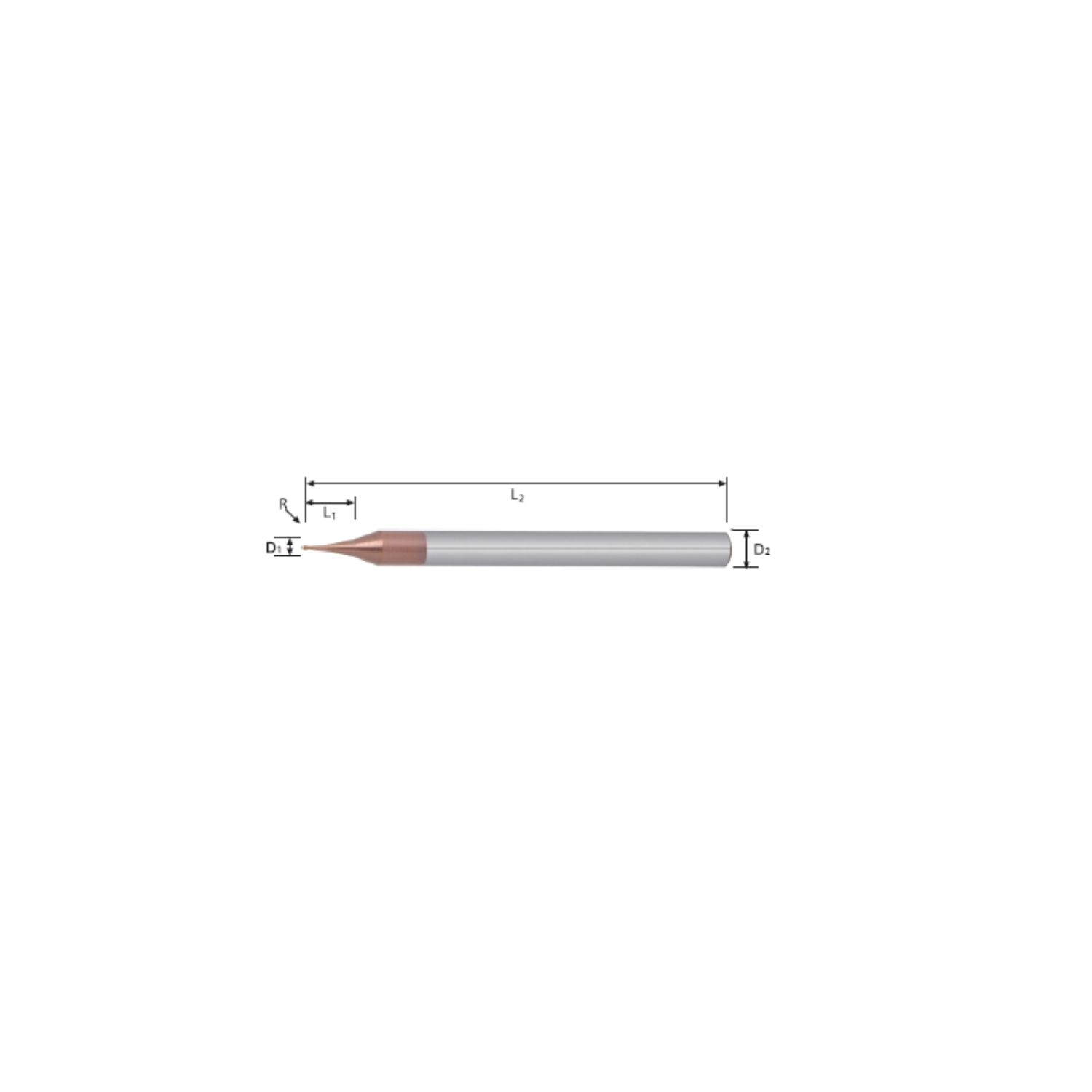

Product Description
Carbide Micro Ball Nose 2 Flute Coated
(Hardened Material)
| Part No. | Mill Dia (D1) | Radius (R) | Cutting Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|---|
| SYMBNHD 200 001C | 0.1 | 0.05 | 0.3 | 4.0 | 50.0 |
| SYMBNHD 200 002C | 0.2 | 0.10 | 0.4 | 4.0 | 50.0 |
| SYMBNHD 200 003C | 0.3 | 0.15 | 0.6 | 4.0 | 50.0 |
| SYMBNHD 200 004C | 0.4 | 0.20 | 0.8 | 4.0 | 50.0 |
| SYMBNHD 200 005C | 0.5 | 0.25 | 1.0 | 4.0 | 50.0 |
| SYMBNHD 200 006C | 0.6 | 0.30 | 1.2 | 4.0 | 50.0 |
| SYMBNHD 200 007C | 0.7 | 0.35 | 1.4 | 4.0 | 50.0 |
| SYMBNHD 200 008C | 0.8 | 0.40 | 1.6 | 4.0 | 50.0 |
| SYMBNHD 200 009C | 0.9 | 0.45 | 1.8 | 4.0 | 50.0 |
